All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
| Menşe yeri | Shandong, Çin |
|---|---|
| Marka adı | OEM |
| Sertifika | ISO TLC |
| Model numarası | ADSS -48B1.3 |
| Min sipariş miktarı | 2000m |
| Fiyat | EXW $0.3/M |
| Ambalaj bilgileri | 1. Demir-Wooden Davul veya Fumigasyon Olmayan Ahşap Davul, Normal Ahşap Davul. 2. Davul boyutu tasar |
| Teslim süresi | 5-8 gün |
| Ödeme koşulları | havale, akreditif |
| Yetenek temini | 5000km/gün |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Elyaf Türü | G652D/G657A1 A2 | lif sayısı | 2-288 çekirdek |
|---|---|---|---|
| Güç Üyesi | CTP | Ceket | PE |
| Ceket Rengi | Siyah | Marka | OEM |
| Vurgulamak | ADSS Fiber Optic Cable,Networking ADSS Fiber Optic Cable,Self Supporting ADSS Fiber Optic Cable |
||
Ürün Açıklaması
Description

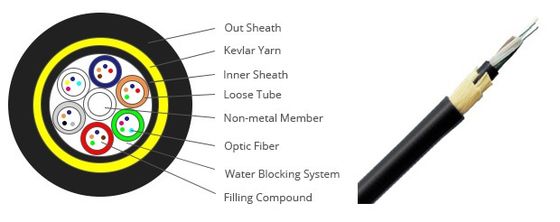

ADSS cable, which stands for All-Dielectric Self-Supporting cable, is a type of fiber optic cable designed for aerial applications, particularly in environments near high-voltage power lines. It's unique because it doesn't require a separate messenger wire for support, making it ideal for one-step installation on poles and towers
Features&Application
1.Utility Companies:
ADSS cables are widely used by utility companies for transmitting data and voice communications over power lines
2.Telecommunications:
They are also used by telecommunications companies for providing high-speed internet and other communication service
3.Campus Backbones:
ADSS cables are suitable for establishing reliable communication links within campuses and between building
4.Long-Span Applications:
ADSS cables, particularly those with long-span designs, can be used for installations where long distances need to be covered between support structure

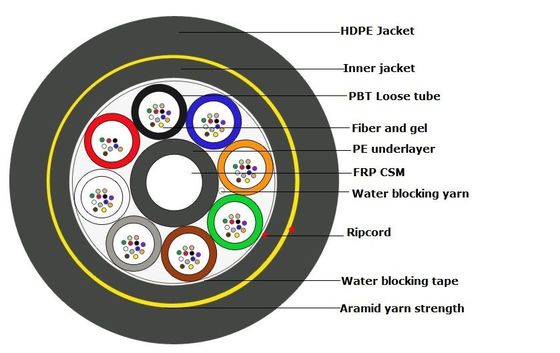

Specification
| Fiber Count | 12 | 24 | 36 | 48 | 96 | 144 | |
| Fiber Count Per Tube | 6 | 6 | 6 | 12 | 12 | 12 | |
| Loose Tube | Material | PBT | |||||
| Water Blocking Material | Fiber Jelly | ||||||
| Counts | 2 | 4 | 6 | 4 | 8 | 12 | |
| Central Strength Member | Material | FRP Rod (Coated with PE if needed) | |||||
| Counts | 2.2 | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | |
| Overall Diameter (nom.)(mm)(±0.2) | 10.3 | 10.4 | 10.4 | 11 | 12.3 | 14.9 | |
| Outer Jacket | Material | HDPE, Black | |||||
| Nominal Thickness (mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Cable Weight | Kg/Km | 73 | 76 | 76 | 86 | 109 | 162 |
| Temperature Range | Operation | -30°C~+70°C | |||||
| Storage | -30°C~+70°C | ||||||
| Installation | -10°C~+60°C | ||||||
