High-Quality 4~144 Core GYTC8S Self-Supporting Outdoor Fiber Optic Cablefor Long-Distance Network Installation
Ücretsiz numuneler ve kuponlar için bana ulaşın.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Model Adı | Gytc8s | Kurulum Sıcaklığı | -30°C ila +60°C |
|---|---|---|---|
| Ambalaj | 2-4km/ahşap tambur | Yaşam süresi | 25-30 yıl |
| Kurulum | kendini destekleyen Hava | Elyaf aralığı | 2-144 çekirdek |
| Ceket malzemesi | Polietilen (PE) | Zırhlı | Çelik Bant Zırhlı |
| fabrika | Evet | Fiber modeli | G652D G657A1 G657A2 |
| Vurgulamak | 4~144 core outdoor fiber optic cable,GYTC8S self-supporting fiber cable,long-distance network installation fiber optic |
||
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
| Loose Tube |
|---|
Ürün Açıklaması
Product Description:

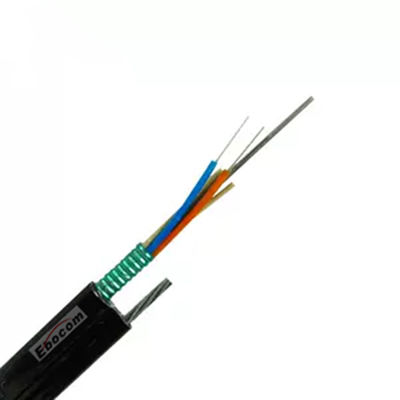

The GYTC8S fiber optic cable is a self-supporting Figure 8 outdoor optical cable designed for aerial installations and FTTH or access network projects. It integrates a messenger wire (supporting strand) and a steel tape armored optical core, providing both mechanical strength and excellent optical performance in harsh environments.
The messenger part — a galvanized steel wire or stranded steel cable — allows the cable to be easily suspended between poles without the need for additional supporting wires, significantly simplifying installation and reducing costs. The core is made up of loose tubes filled with water-blocking gel and single-mode or multimode fibers, ensuring reliable transmission and long-term stability.
The GYTC8S cable is suitable for aerial, outdoor, and last-mile FTTH applications, especially in rural broadband, CCTV systems, and telecom backbone networks. The steel tape armor provides strong protection against rodents, moisture, and mechanical impact, making it ideal for both urban and countryside deployments.
Key Features:
-
Figure 8 self-supporting design — Integrated messenger wire for easy aerial installation.
-
Steel tape armored — Enhances crush resistance and protection against rodents and environmental stress.
-
Water-blocking structure — Prevents moisture penetration and fiber damage.
-
High tensile strength — Ideal for long-span aerial installations.
-
Supports various fiber types — G.652D, G.657A1, OM2, OM3 available.
-
UV and temperature resistant — Durable in outdoor conditions (-40°C ~ +70°C).
-
Customizable messenger wire — Single steel wire or stranded steel cable (e.g., 7×1.0mm).
Technical Specifications:
| Item | Description |
|---|---|
| Cable Type | GYTC8S Self-Supporting Outdoor Fiber Optic Cable |
| Structure | Figure 8 design with messenger wire + loose tube armored cable |
| Messenger Wire | Galvanized steel wire or stranded steel cable (e.g., 7×1.0mm) |
| Fiber Type | Single-mode (G.652D / G.657A1) or Multi-mode (OM2 / OM3) |
| Core Count | 2–144 fibers |
| Armoring | Corrugated steel tape |
| Strength Member | Phosphated steel wire |
| Outer Sheath Material | PE |
| Installation Method | Aerial, self-supporting |
| Operating Temperature | -40°C to +70°C |
| Span Range | 50m – 200m depending on messenger wire diameter |
Applications:
-
FTTH (Fiber to the Home) aerial network deployments
-
Rural broadband and telecom access networks
-
CCTV and intelligent security systems
-
Long-span transmission lines
-
Industrial park and campus fiber infrastructure
Why Choose Ebocom?
As a professional optical cable manufacturer with over 12 years of experience, Ebocom offers:
-
Complete production lines for GYTC8S, GYXTC8S, ADSS, OPGW, GYTA, GYTS, and drop cables
-
OEM/ODM customization (fiber count, jacket color, messenger wire type, printing, and packaging)
-
Strict quality testing in our in-house performance laboratory
-
Fast delivery & competitive pricing directly from the factory
