Flame Retardant Mining Fiber Cable MGTSV G652D 12 24 36 48 core Double Armoured for Communication
| Menşe yeri | Shandong ， Çin |
|---|---|
| Marka adı | EBOCOM |
| Sertifika | ISO TLC |
| Model numarası | MGTSV |
| Min sipariş miktarı | 2000m |
| Fiyat | EXW ≥2000m $0.5/M ≥5000m $0.46/M |
| Ambalaj bilgileri | 1. Demir-Wooden Davul veya Fumigasyon Olmayan Ahşap Davul, Normal Ahşap Davul. 2. Davul boyutu tasar |
| Teslim süresi | 7-15 Gün |
| Ödeme koşulları | T/T |
| Yetenek temini | 10km/gün |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Kablo Modeli | MGTSV Fiber Optic Kablosu | Güç üyesi | Çelik tel bant |
|---|---|---|---|
| Ceket malzemesi | Pe alev geciktirici pe lszh | Bükülme yarıçapı | Statik 10*Kablo-D Dinamik 20*Kablo-D |
| Çalışma Sıcaklığı | -40°C~+70°C | Renk | Siyah |
| Fiber sayısı | 4-288 çekirdek | Elyaf Tipi | G652D G657A1 G657A2 |
| Teslimat Tarihi | 7-15 GÜN | ||
| Vurgulamak | Flame retardant mining fiber cable,MGTSV G652D armored optic cable,Double armoured communication cable |
||
Ürün Açıklaması
Product description
MGTSV is suitable for coal, gold, and iron mines. Its flame-retardant and rodent-proof properties make it an ideal choice for mining operations. It is particularly suitable for accident-prone mines, ensuring uninterrupted communication and minimizing losses in the event of an accident.
The steel armor helps protect the cable from rodent bites and provides bulletproof protection. The double-sheath structure offers excellent moisture resistance and pressure resistance. Furthermore, the outer sheath is flame-retardant, and the loose-tube material itself has excellent hydrolysis resistance. Waterproof performance ensures safety during underground operations
Application
• Certified for use by national authorities
• Intended for mines, mine shafts and cable trays used for mining applications
2.Features
Excellent fire resistance.
High-strength, hydrolysis-resistant loose-sleeve tubing.

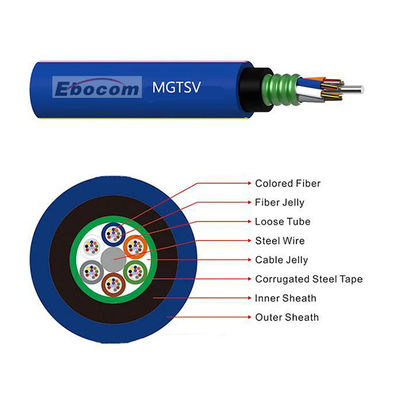

Double-layer wrapping and single-layer reinforcement design provide superior compressive strength, waterproofing, and rodent resistance. The loose-sleeve tubing is wrapped in non-woven fabric for waterproofing. Special internal filling ensures optimal fiber protection.
Blue PVC outer layer: fire resistant; blue for easy identification.
Compressive strength and flexibility.
3. Technical parameters
| Cable Type | Fiber Count | Tubes+Fills | Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Term N/100m |
Bending Radius Static/Dynamic mm |
| MGTSV-2～6 | 2～60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62～72 | 62～72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74～96 | 74～96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98～120 | 98～120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122～144 | 122～144 | 12 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146～216 | 146～216 | 18 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
